GCK Lions Ice Rink KEK
When the ice shines in broadcast quality
65 light points instead of a sea of luminaires – the TV standard met at mounting heights that left barely any margin.

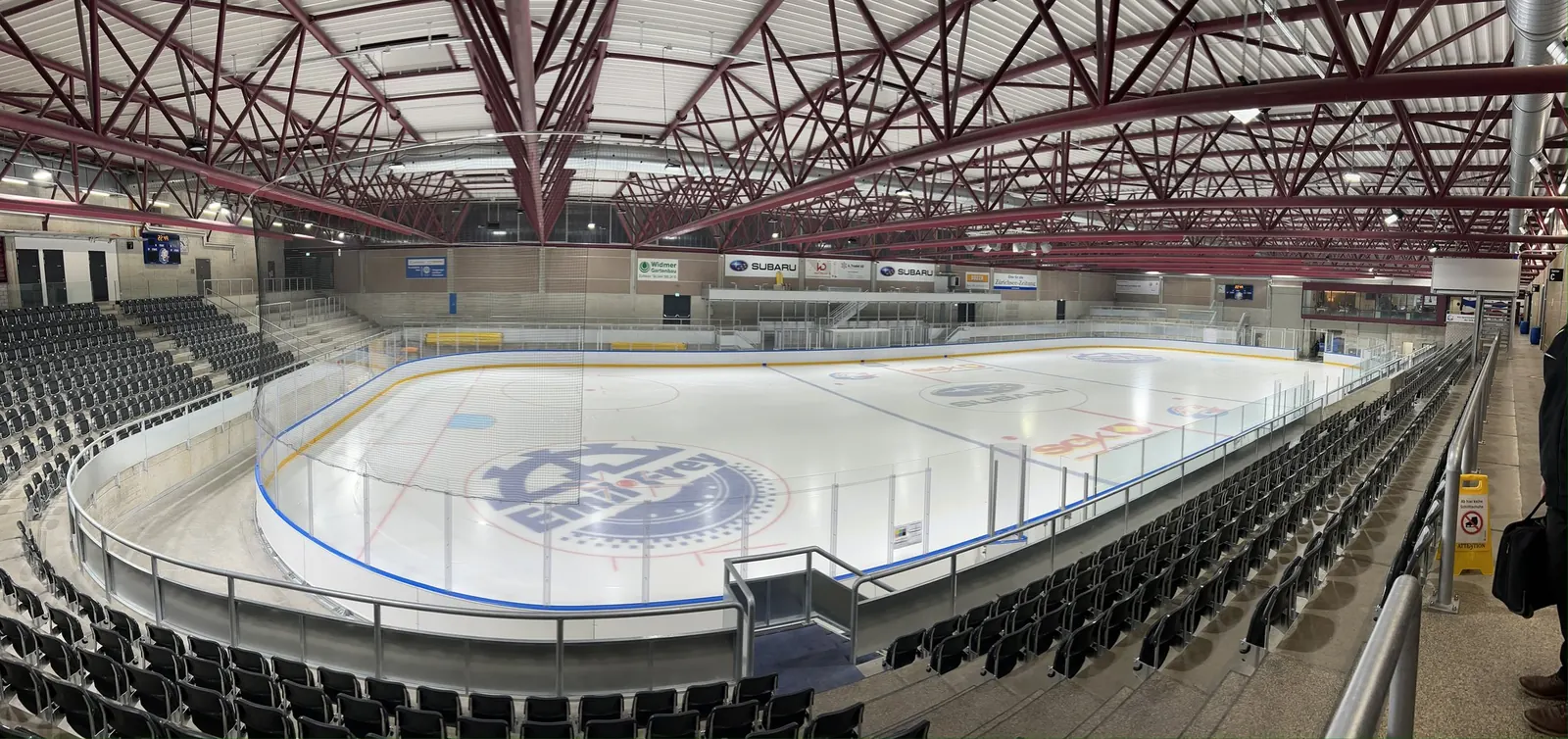

For the Küsnacht ice rink we relit both the hall and the outdoor ice field, including the columns and support structures for the open-air pitch. The brief was demanding: light of broadcast quality to the standards of the international ice hockey federation, mounted on the existing close-meshed steel girder structure and therefore at an unusually low height. We developed a project-specific mounting solution for it and reached the lighting and glare values with only 65 light points. Overall coordination between designers, installers and the other trades lay with us, we recorded the lighting measurement to the federation requirements and handed the installation over to SIA. It is controlled via common standards – league game, training and outdoor field at the push of a button, without specialist knowledge in operation.
- Development of a control concept
- Processing and preparation of digital planning documents
- Homologation to the relevant association criteria
- Lighting measurement to SLG 103, 202, 301, 501, 502
- Preparation of the lighting calculation to SN EN 12464, 12193, 13201 and SLG guidelines
- Preparation of project-specific parts lists for installation
- Support and briefing of the installers
- Provision of local installation teams
- Delivery of all luminaires and components for implementing the lighting project
- Aiming the luminaires according to the lighting plan
- Readjustment of the luminaires and controls
- Setting and networking of simple and complex lighting systems
- Number of luminaires
- 65
- Project duration
- 14 months
- Installation time
- 4 weeks
- Core products
- Thor sports floodlight, Atlas linear floodlight
